Effetive use of dilated convolutions for segmentation small object instances in remote sensing imagery

用dilated convolutions 来做遥感影像中的小目标的分割

Posted by 柳阳飞 on June 10, 2019

动机:

解决遥感影像中目标小和拥挤的问题。


方法:

提出local feature extraction module(LFE)。dilation factors 扩大的卷积不能联合局部特征,LFE采用dilation factors缩小的卷积。


网络:

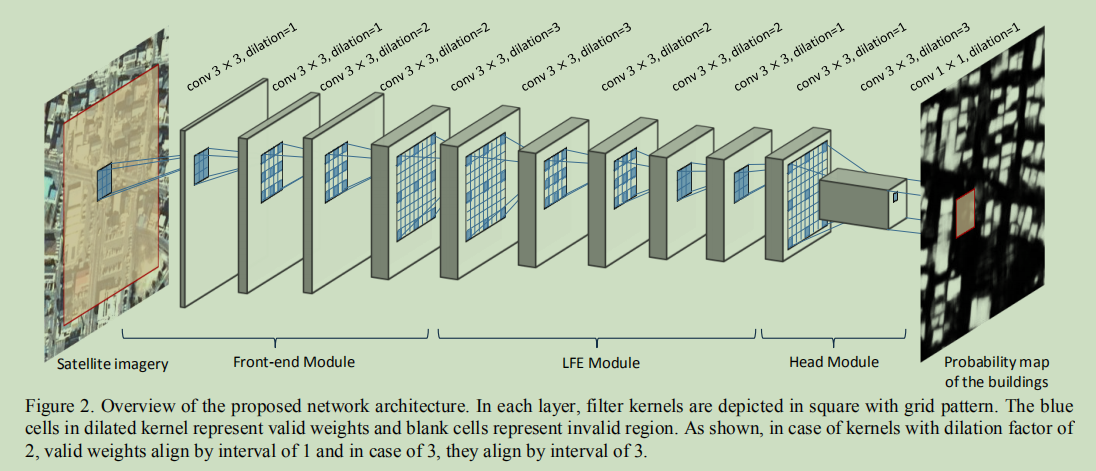

整个网络分为三个模块。 net

三个模块:

The front-end module: 为了满足大感受野,同时保持分辨率,采用了dilated convolution

  • extract features that cover large context, the dilation factors are gradually increased。
  • 产生两个问题:
    problem
    1. spatial consistency between neighboring units becomes weak

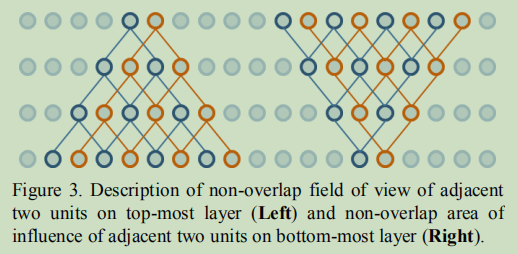

      如上图左边所示,所有蓝色单元构成一个信息金字塔,金字塔顶层的特征受到底层的影响。可以看到两个相邻的单元没有相互重叠的信息,因为dilation factor=2。随着dilation factor 的增大,没有信息重叠的单元会增多,输出将会逐渐与输入偏离。这种空间不连续性会导致预测结果产生锯齿现象。
    2. local structure cannot be extracted in higher layer
      顶层单元只能接收以上两个单元中的一个,不能同时获得所有信息,这意味着所有的顶层单元都不知道这两个单元的局部结构。这种情况下,如果目标足够大,可以从目标内部特征识别局部结构,上述的结构不会产生问题;如果目标比较小,其中的一些特征需要被高层提取和识别,此时由于没有重叠信息就很难提取特征。

The LFE module: 为了处理上述两个问题,提出了LFE结构。attach structure with decreasing dilation factor after increasing one, information pyramids of neighboring units can be connected again。递减的结构逐渐恢复相邻单元的连续性,并且可以从高层提取局部特征。

The head module: 通过对生成的probability map设置阈值来获得mask

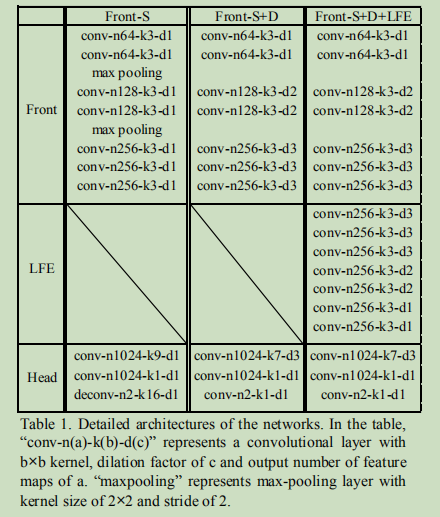

网络细节

ditail

设计实验

整个实验考虑到三个方面:

  1. 对于不同的感受野,分为Small FOV和Large FOV。针对不同的FOV设计的网络是基于Pool的类似于VGG16的结构,对应的网络分别是Front-SFront-Lonly layers bellow third pooling layer of VGG-16 are used for small FOV (Front-S) and layers bellow fourth pooling layer are used for large FOV (Front-L)。
  2. 验证dilation convolution 的作用,对应的网络分别为Front-S+DFront-L+D。 移除了网络中的所有的pool层,把convolution层变成dilation convolution层。
  3. 验证LFE模块的作用,把LFE模块连接在网络后面,对应的网络为Front-S+D+LFEFront-L+D+LFE。 同时为了保证参数量的公正,设计了网络Front-S+D+LargeFront-L+D+Large。 它们有相同的参数量,唯一的不同就是它们没有递减的dilation factors。
  4. 所有的卷积后都有Relu层激活,除了最后一层是softmax。所有的网络采用 76x76 patches作为输入,输出是概率图中间的 16x16 的区域。

实验结果

result

result

result

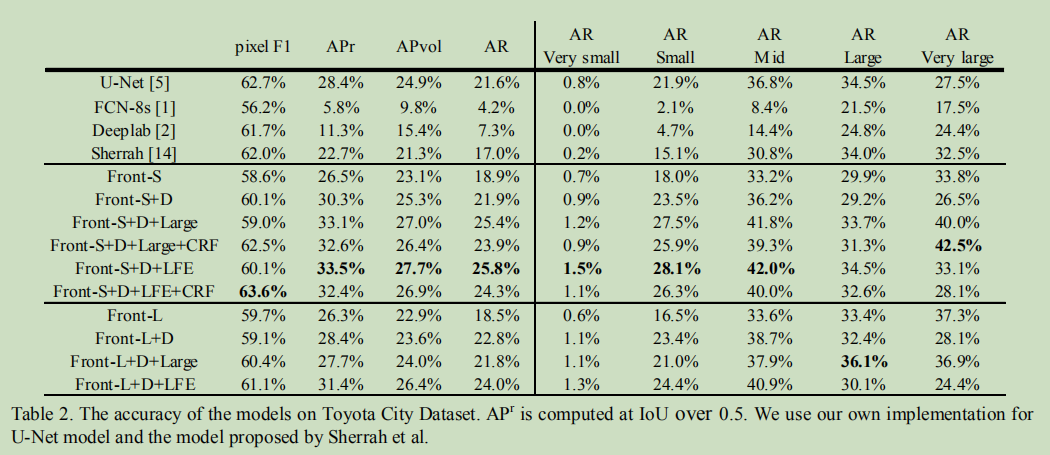

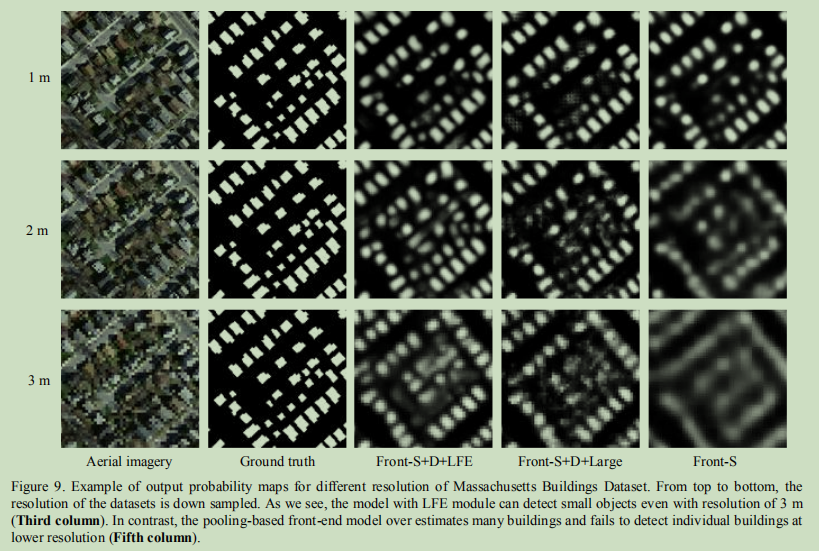

Very small (0-100 pixels), Small (100-400 pixels), Mid (400-1,600 pixels), Large (1,600-6,400 pixels) and Very large (over 6,400 pixels)。
训练数据集: Toyota City Dataset
测试数据集: Massachusetts Buildings Dataset https://www.cs.toronto.edu/~vmnih/data/
Vaihingen Dataset

参考

[1] Effective Use of Dilated Convolutions for Segmenting Small Object Instances in Remote Sensing Imagery https://arxiv.org/abs/1709.00179
